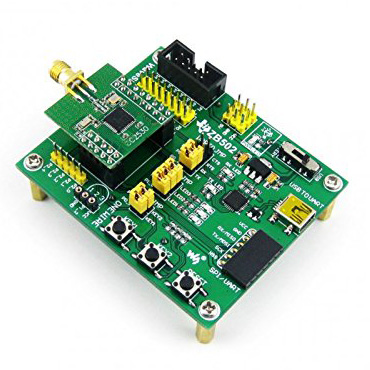

ZigBee Module Core2530 CC2530F256RHAR CC2530F256 Evaluation Development Board Core Kit CC2530

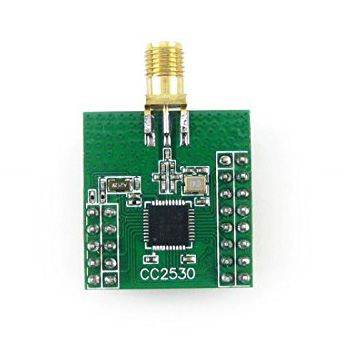

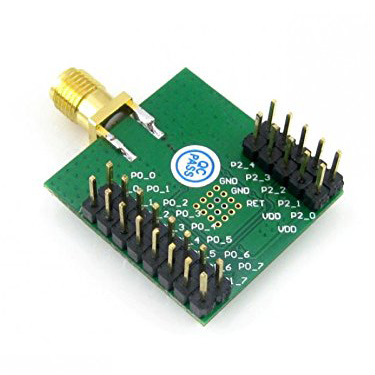

product description Overview Core2530 is a ZigBee module based on CC2530F256. Basically, this module can be used in two ways: - Develop the application with the provided firmware. Combined with the firmware we provided, this is a simple ZigBee wireless UART module that is as easy to use as any other UART module and does not require knowledge of complex ZigBee specifications - Develop your own firmware. characteristic - Just as easy as any UART module - Provided firmware: coordinator, router, terminal equipment - The router firmware is preinstalled by default - Support for sending big data packets and fast broadcast via UART - Support for programming via UART (thanks to Bootloader, serial port required) - Support PC software configuration: working mode, UART port, baud rate, signal channel and so on. - Automatic networking (requires at least 1 coordinator and 1 router) - Real time monitoring of signal strength between coordinator, router and terminal equipment specification Onboard chip: CC2530F256RHAR - communication distance (open and wide operating environment): Absolute maximum: over 350 meters Stable communication: more than 250 meters Automatic connection: more than 120 meters - Frequency range: 2.4GHz - Wide supply voltage range (2V-3.6V) - Operating temperature: -40 ℃ ~ 85 ℃ - Serial baud rate: 38400bps (default), software configuration different baud rate - Expand pinheader: All I / Os - Pinheader pitch: 2.54mm - Left and right pinheaders spacing: 22.86mm (9x2.54mm) - Antenna: 2.4G 2DB 360 ° Omnidirectional product information Package size 4 x 2 x 2 inches
