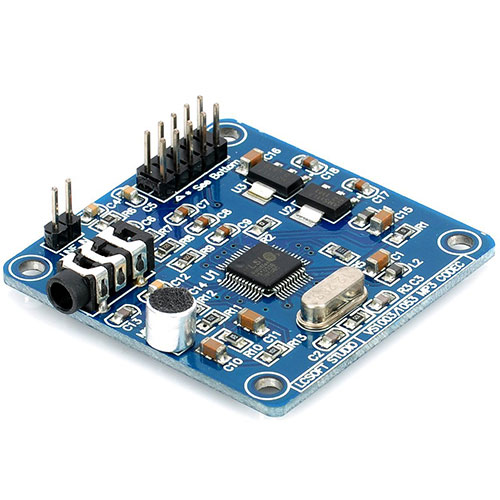

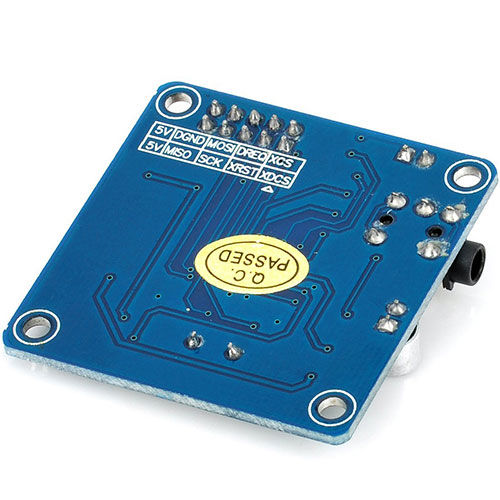

VS1053 module VS1053 MP3 module, development board (on-board recording function)

073104- Quantity: 1- Material: Copper-clad laminate- VS1053 chipset, support all audio formats and OGG real-time encoding record- SPI port, control signal cable leads- 1 x Earphone and audio output interface- 1 x Microphone interface, used to record voice- 1 x Line in input interface- With Power indicator- On-board 3.3V and 1.8V LDO chipset AMS-1117, the Max current is 800mA - Single power supply: DC +5V, capacitor filter- 12.288MHz crystal- Great for DIY project
