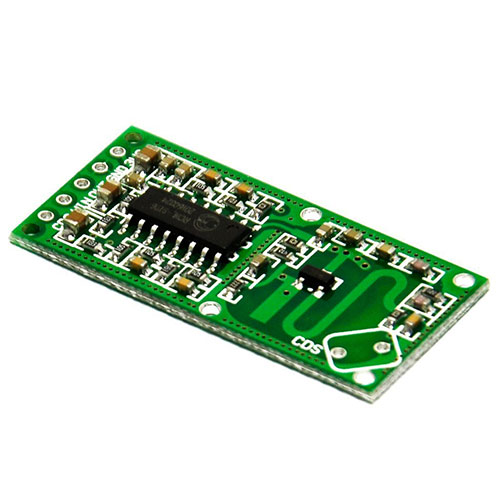

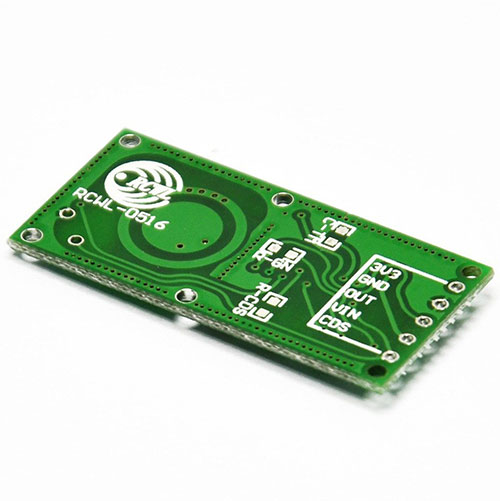

RCWL-0516 5-7m Doppler Radar Microwave Sensor Switch Module

产品描述 Product Introduction: 1.Operating Voltage:4-28V 2.Operating Current:2.8mA (typical);3mA (max) 3.Detection Distance:5-7m 4.Transmitting Power:20mW (typical);30mW (max) 5.Output Voltage:3.2-3.4V 6.Output Voltage Driving Capacity:100mA 7.Trigger Way:repeat trigger 8.Output Control Low Level:0V 9.Output Control High Level:3.3V 10.Operating Temperature:-20~80 celsius 11.Storage Temperature:-40~100 celsius Adjustment Part Introduction: 1.C-TM Adjust repeat trigger time,default trigger time is 2s;increasing capacitors capacity will make repeat trigger time longer;and actual counting trigger time can operate as below: Stick capacitor on C-TM,test 9196 3-pin frequency F,repeat trigger time T=(1/f)*32768 2.R-GN Detection distance adjustment;connect with resistor and detection distance will become shorter;if not connect,detection distance is 7m;if connect with 1M ohm resistor,detection distance is 5m 3.R-CDS Internal VCC parallel connect with internal 1M ohm resistor to CDS pin (that is 196 9-pin) by R-CDS ,CDS connects with photoresistor,you can close detection function at night
