Product description

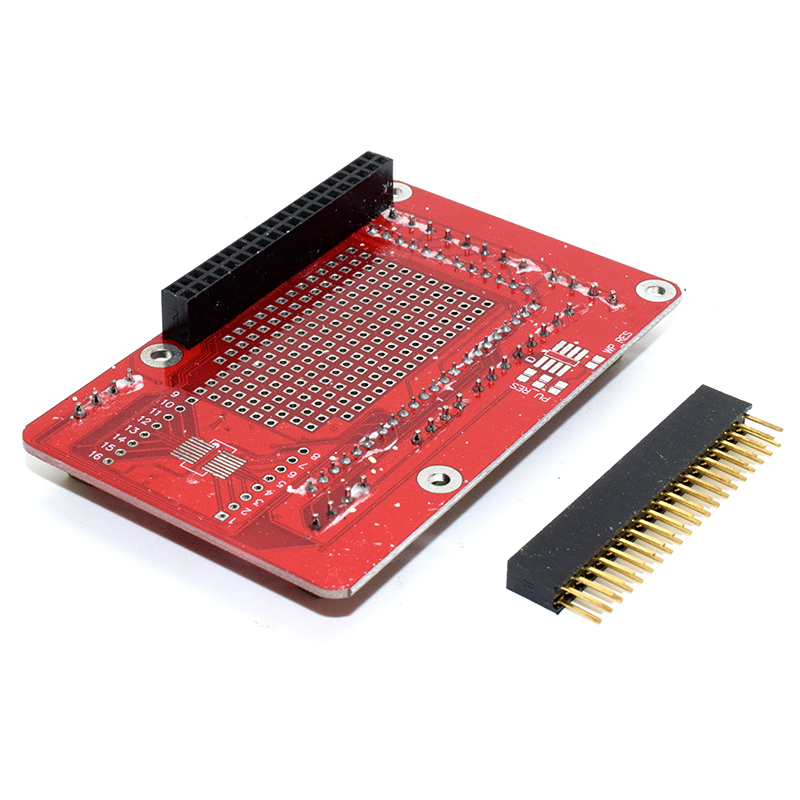

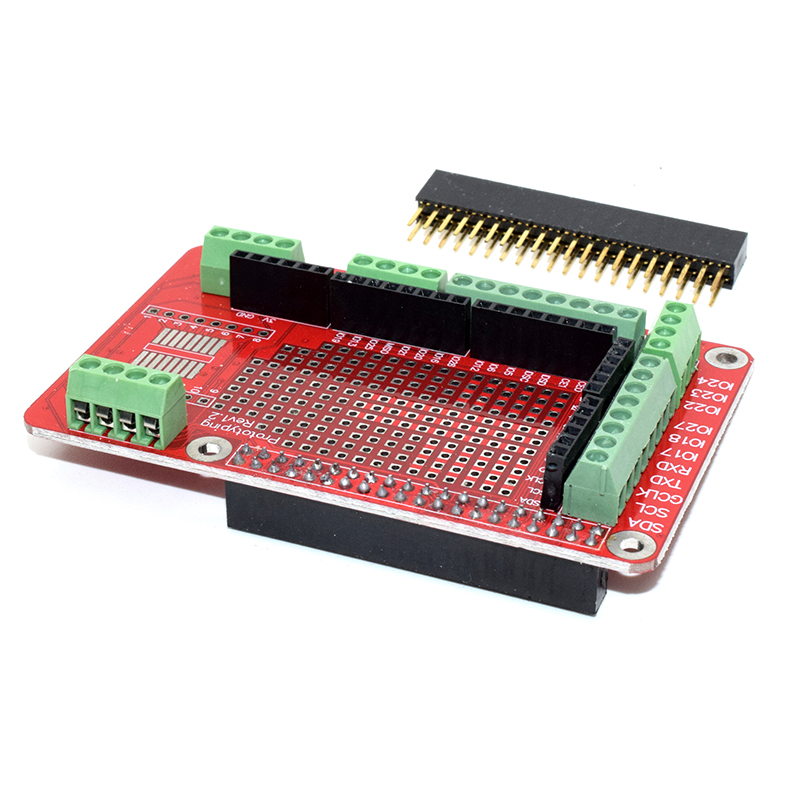

Descriptions: This a Raspberry Pi 3/Pi 2/Model B+/Model A+ prototyping shield from Tinysine, You can stack it on your Raspberry Pi Model B+ easily. which can snap onto the Pi B+ main board assembly (and is removable later if you wish) and gives you all sorts of prototyping goodness to make building on top of the Pi B+ super easy! We added lots of basic but essential goodies. First, theres a big prototyping area, half of which is breadboard style and half of which is perfboard style so you can wire up DIP chips, sensors, and the like. Along the edges of the proto area, all the GPIO/I2C/SPI and power pins are broken out to 0.1" stips so you can easily connect to them. On the edges of the prototyping area, all of the breakout pins are also connected to labeled 2.5mm screw-terminal blocks. This makes it easier to semi-permanently wire in sensors, LEDs, etc. Theres also a 4-block terminal block broken out to 0.1" pads for general non-GPIO wiring. Finally, we had a little space remaining over the metal connectors so we put in an SOIC surface mount chip breakout area, for those chips that dont come in DIP format. Features Size: 8.5 x 5.6 x 2.4cm Weight: 35g Compatible with Raspberry Pi 3/Pi 2/Model B+/Model A+ Product information Product Dimensions 8.5 x 0.9 x 5.5 inches Item Weight 1.44 ounces
