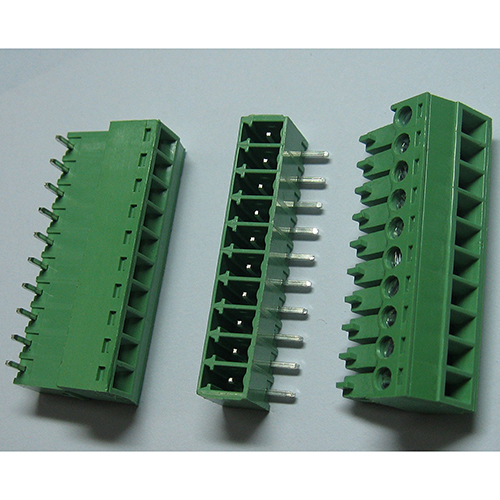

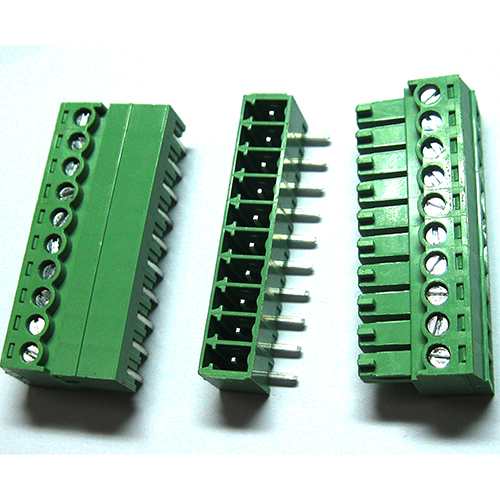

Pitch 3.5/3.81mm Angle 8way/pin Screw Terminal Block Connector w/ Angle Pin Green Color Pluggable Type Skywalking

product description Material - Housing: PA66 UL94V-0 - Contact: Phosphor Bronze, Nickel Plated - Solder Pin: Brass, Tin Plated - Screw: M2, Steel, Zinc Plated Electrical - Voltage Rating: 300V - Current Rating: 8A - Insulation Resistance: 5000MΩ / 1000V - Contact Resistance: 20mΩ - Withstand Voltage: 2000V / 1min - Wire Range: 26 ~ 16AWG Mechanical and Operating Environment - Torque: 0.2Nm - Stripping Length: 5 ~ 6mm - Temperature Range: -40 ° C ~ 105 ° C - MAX Welding: + 250 ° C 5Sec
