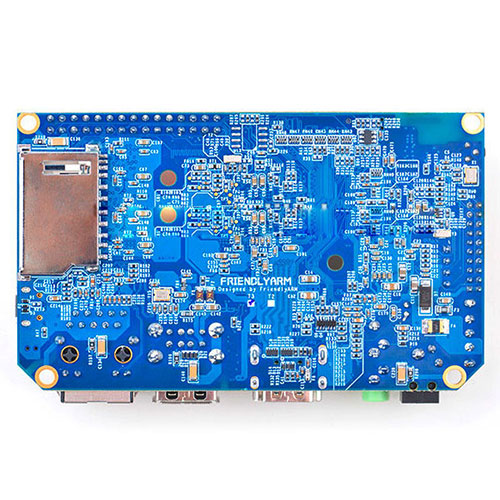

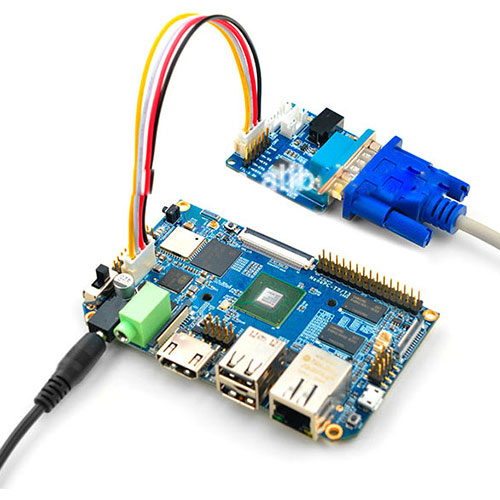

NanoPC-T3 - 64-bit Octa-Core A53 SBC
?
Introduction

Power Management Unit: AXP228 PMU, supports software shutdown and wake-up.
System memory: 1GB / 2GB 32bit DDR3 RAM
Storage: 1 x SD card slot
Ethernet: Gigabit Ethernet (RTL8211E)
WiFi: 802.11b / g / n
Bluetooth: 4.0 dual mode
Antenna: porcelain antenna IPX interface
eMMC: 8GB
Video input: DVP camera / MIPI-CSI (two camera interfaces)
Video Output: HDMI Type-A / LVDS / Parallel RGB-LCD / MIPI-DSI (Quad Video Output Interface)
Audio: 3.5mm audio jack / via HDMI
Microphone: On-board microphone
USB host: 4 x USB 2.0 host, two Type A ports and two 2.54 mm pitch pins
MicroUSB: 1 MicroUSB 2.0 client, Type A.
LCD Interface: 0.5 mm pitch 45-pin FPC Block, full color RGB 8-8-8
HDMI: 1.4A Type A, 1080P
DVP camera: 0.5mm pitch 24-pin FPC holder
GPIO: 2.54mm pitch 30-pin
Serial debug port: 2.54mm pitch 4-pin plug
User key: K1 (power), reset
LED: 1 power indicator and 2 GPIO indicators
Other Resources: CPU Internal TMU
RTC Battery: RTC Battery Holder
Heat sink: 1 heat sink with mounting holes
Power: DC 5V / 2A
PCB: six layers
Size: 100 mm x 60 mm
OS / Software: uboot, Android and Debian
Figure, layout and dimension
