ECG EMG EKG SHIELD Expansion board EMG sensor

Product Introduction

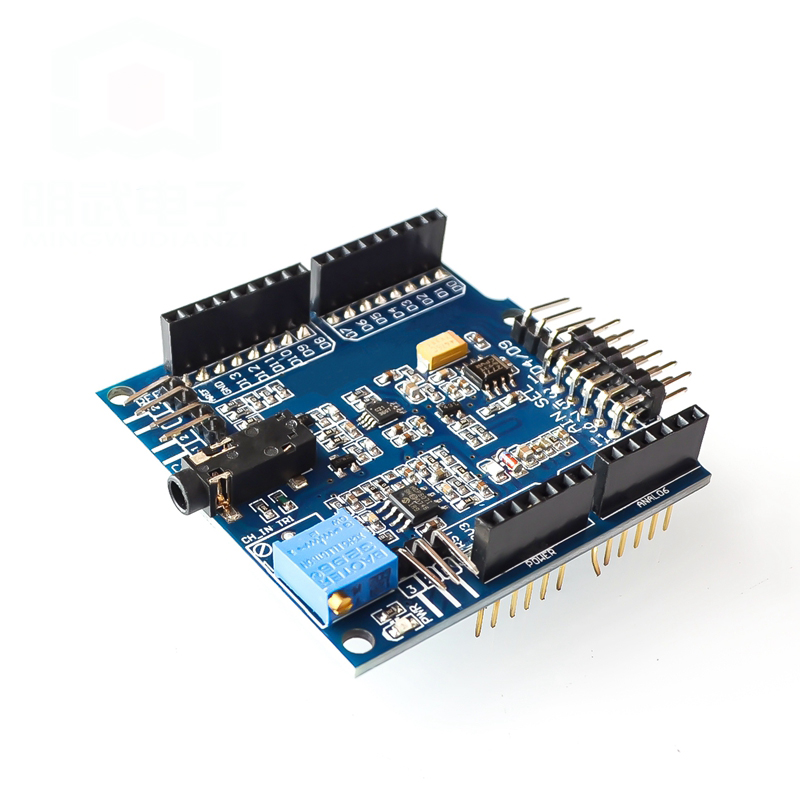

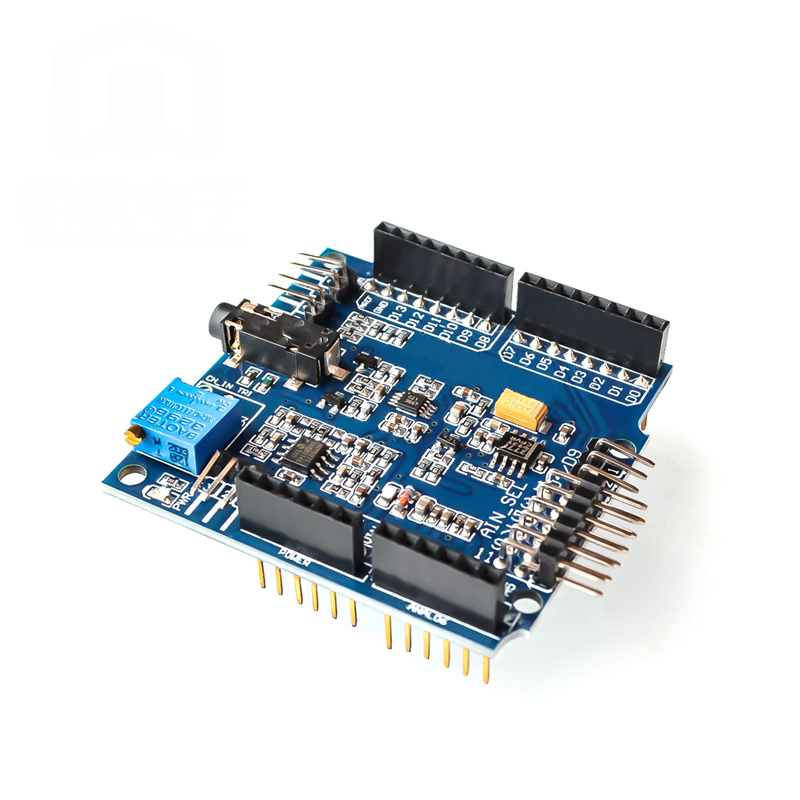

This is an ECG/EMG expansion board that can use duino master control to capture human bioelectric signals and display human biosignal graphics. This expansion board can help you knock on the door of biofeedback experiments. You can use it to build your own projects, such as monitoring your heartbeat and recording your pulse, recognizing your gesture language, and collecting biomicroelectric feedback signals for monitoring And analysis; In addition, you can make your signal changes clear at a glance through the visual graphic display software!



  Specifications

6 expansion boards can be stacked to obtain a total of 6 analog input signal sources from A0-A6

High-precision calibration trimmer potentiometers (all expansion boards are assembled, debugged and calibrated after leaving the factory, so generally you don’t need to adjust the potentiometer unless you want to see how it works)

Use universal input connector interface

Suitable for 3.3V or 5V duino circuit board
