DC-DC 10A Constant Voltage Constant Current Step-down Module

product description
Description:
10A synchronous rectification adjustable non-isolated step-down module, constant voltage and constant current.
Input voltage: DC 4-32V; Output voltage: DC 1.2-31V (adjustable).
With short circuit and over temperature protection.
If there is no input reverse protection or output anti-reverse protection, you need to install the diode in the input / output port.
Widely used: automotive batteries, DIY solar cells, DIY constant voltage constant current power supply.

Module Type: Non-isolated buck, the output voltage must be lower than the input voltage
Input voltage: 4-32V (ensure below 36V)
Output voltage: 1.2-31V continuously adjustable
Minimum differential input and output: 1V
Output current: 0-10A 6A natural cooling for a long time, the temperature does not exceed 60 degrees. When the temperature increases, please add an extra radiator or fan.
Operating temperature: -40 to +85 ℃
Working frequency: 150KHz
Conversion efficiency: up to 98%
Short Circuit Protection: Yes (13A)
Over-temperature protection: yes
Input Reverse Polarity Protection: None (if required to string the input diode)
Installation: four 3mm screws

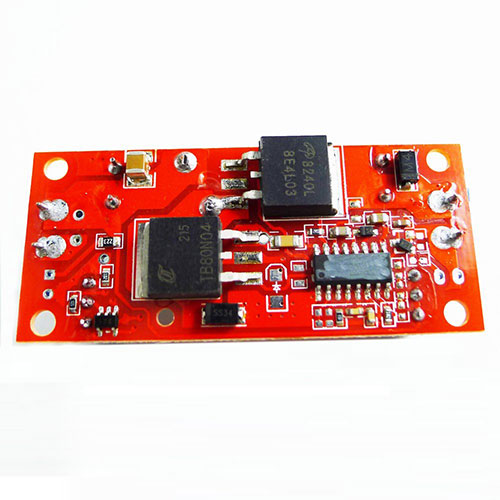

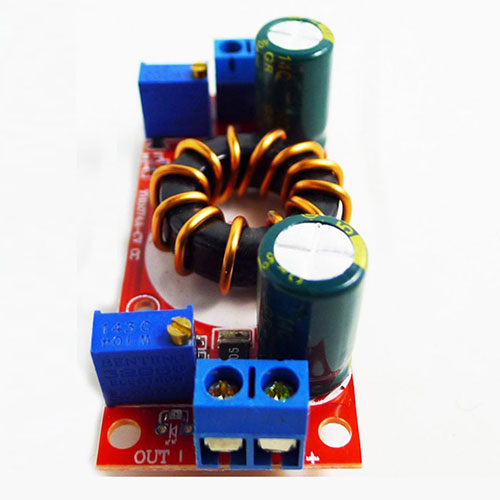

Connection: V-IN is marked on the board as input and V-OUT is output

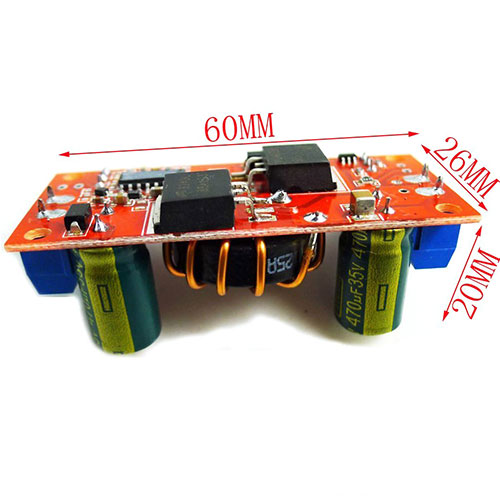

Module size: length 60mm × width 26mm × height 20mm

Product weight 0.8 oz
Package size 3.5 × 2.1 × 1.4 inches
