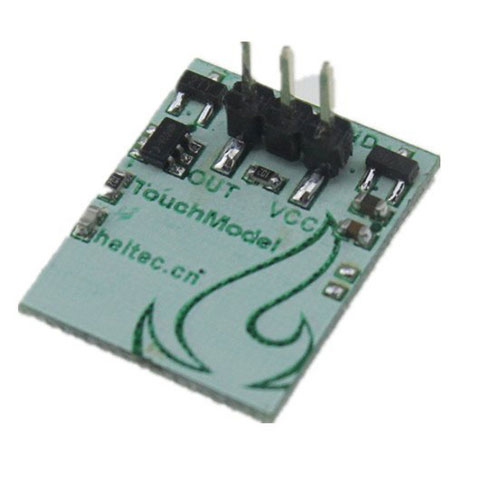

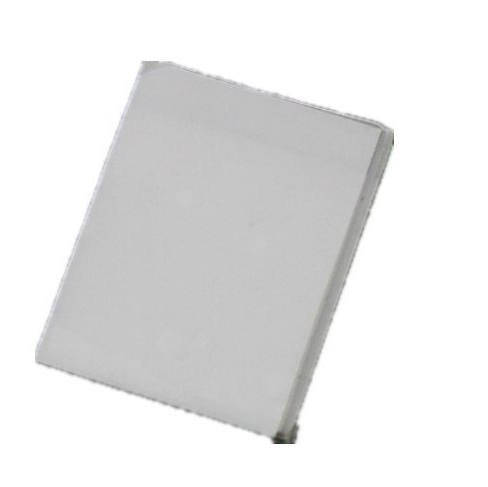

Capacitive touch switch button module 2.7 V to 6 V module anti-jamming is strong HTTM series

Features: 1, no mechanical parts, no Wear, unlimited life expectancy, reduce maintenance costs; 2. The sensing part can be placed in any insulation layer (usually glass or plastic material), easy to make, the environment sealed keyboard, play a moisture-proof, waterproof effect; 3. Panel design to follow one Tendency, arbitrary button size, shape, pattern, text, trademarks and other perspective with the arbitrary window, so that the overall sense of the product stronger; 4. Compared with the physical buttons, touch the button is not easy to damage; 5. Can change the back of the resistor, adjust the signal output lock output or keep the output (see 3.3.2 rainfall distribution 10-12); 6. + 2.7V ~ + 6V wide input voltage range, +3.3 V output signal can be directly used to drive relays, optocouplers, original LED lights; 7. - 30 ~ + 70 ℃ operating temperature range; 8. Touch sensing, no lag, delay, flash and other adverse reactions; 9. Built-in anti-jamming algorithm, with good anti-jamming performance. Pin definitions and parameters: Operating voltage: + 2.7 ~ 6V Operating temperature: 30 ~ + 70 degrees Celsius Output pin output voltage: + 3.3V ± 0.1VOUT pin Maximum output current: 500mA Package included 1 x capacitive touch switch button module
