【product description】

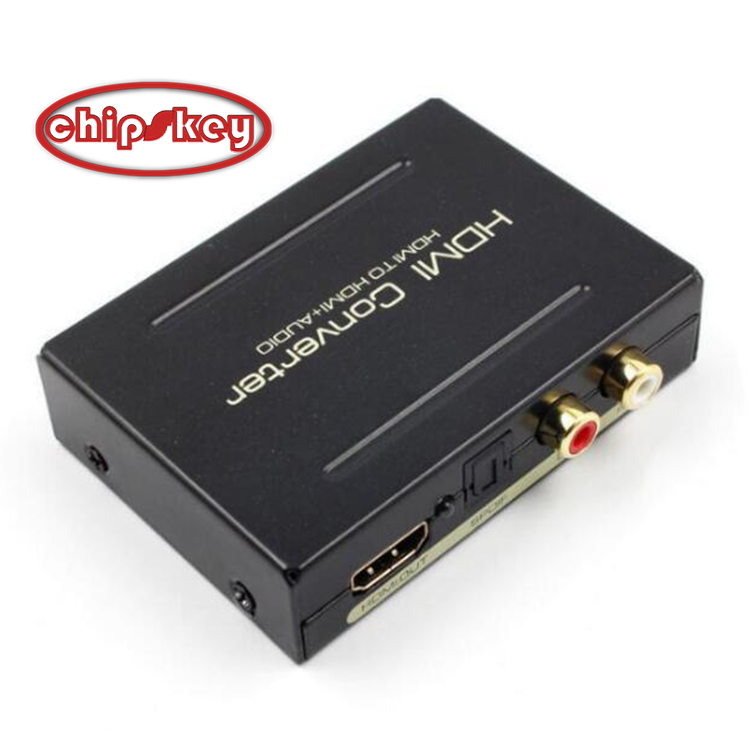

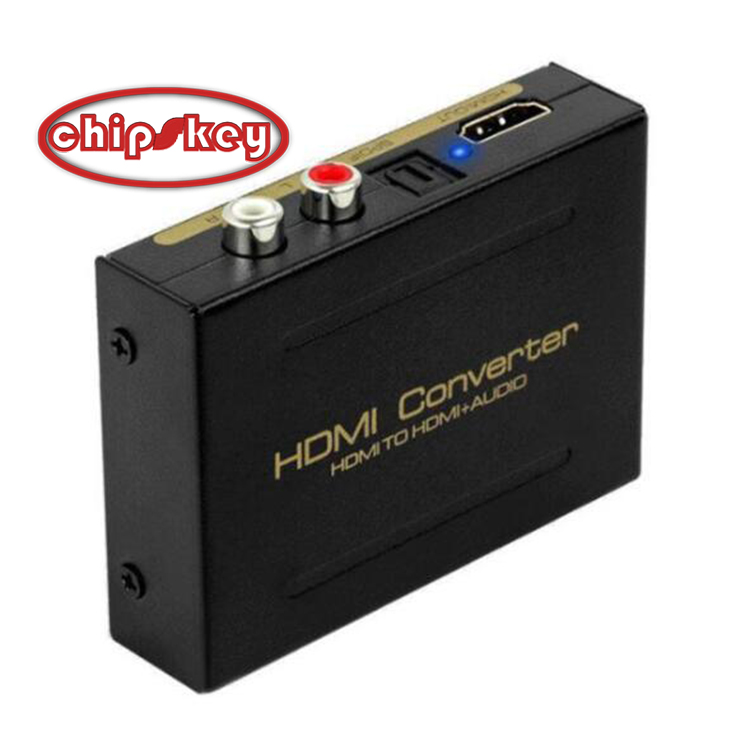

This is a high-performance, multi-functional high-definition audio extractor, this product can extract the audio signal in the HDMI high-definition signal to the power amplifier system. In order to obtain audio effects that are difficult to achieve by TV speakers.
【Product Features】

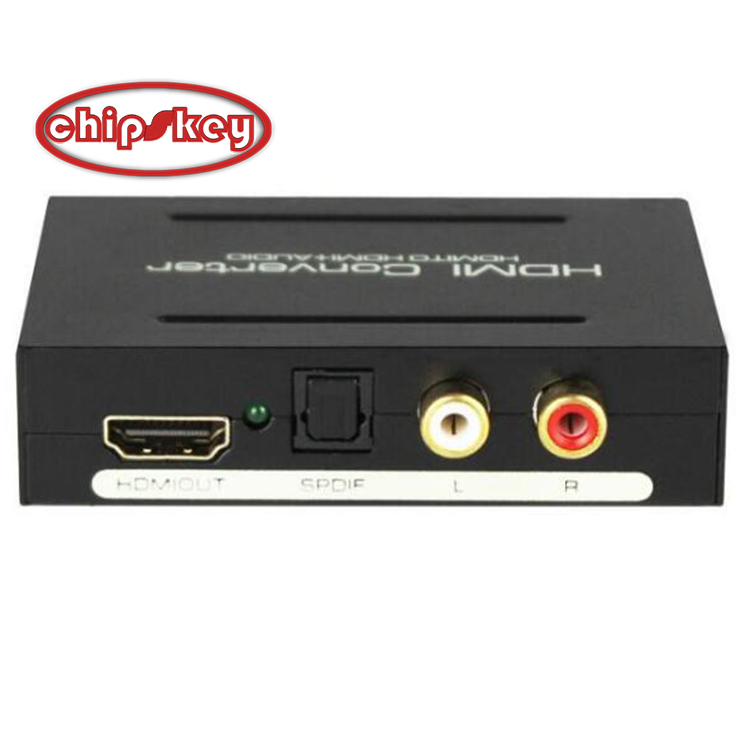

l 1 Convert HDMI input to one HDMI output, one optical audio output and one R/L analog audio output
l 2 Audio output support: optical fiber + R/L analog audio output
l 3 Input resolution: up to 3840x2160@30Hz

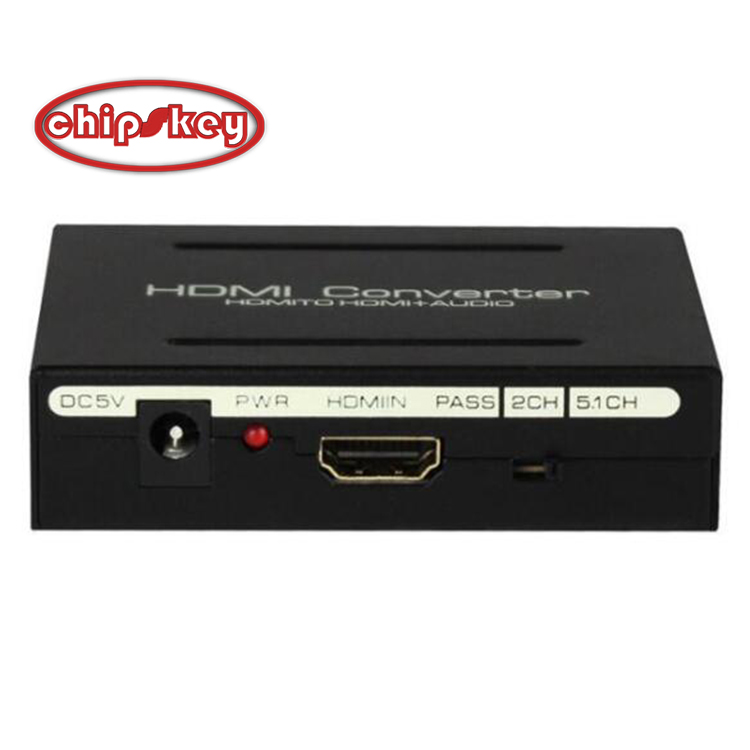

l 4 It can realize the synchronization and separation of audio signals. PASS/2.0CH/5.1CH three audio modes are available
l 5 LED indicator: When the converter is powered on, the red LED will light up; when successfully connected to the HD TV, the green LED will light up;
【Product parameters】
Support resolution...1080p@50/60Hz/1080i/720p/1576i/480p/480i
Support video color format............24bits/deep color 30bit,36bit
Audio output................................................ ..L/R+Fiber
Maximum bandwidth...................................... .....340MHz
Maximum transmission rate............................................ 10.2Gbps
Input/output TMDS signal............0.5-1.5Volts p-p(TTL)
Input/output DDC signal...5Volts p-p(TTL)
Input cable distance............<=7m AWG26 standard cable HDMI
Output cable distance............<=8m AWG26 standard cable HDMI
Maximum working current............................................... ..500mA
Power format...... Input: AC(50/60Hz)100V-240V; Output: DC5V/1A
Operating temperature range......................................(-15 to +55°C)
Moderate working range...5 to 90% RH (non-condensing)
Dimensions (LxWxH)...84.5 x 61.8 x 21(mm)
weight................................................. .........135g
