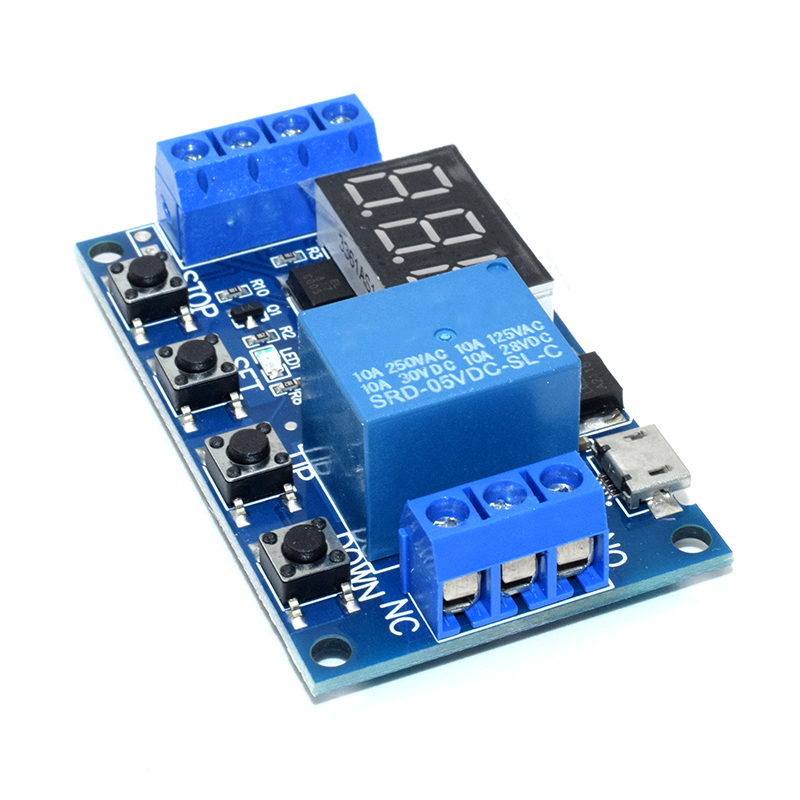

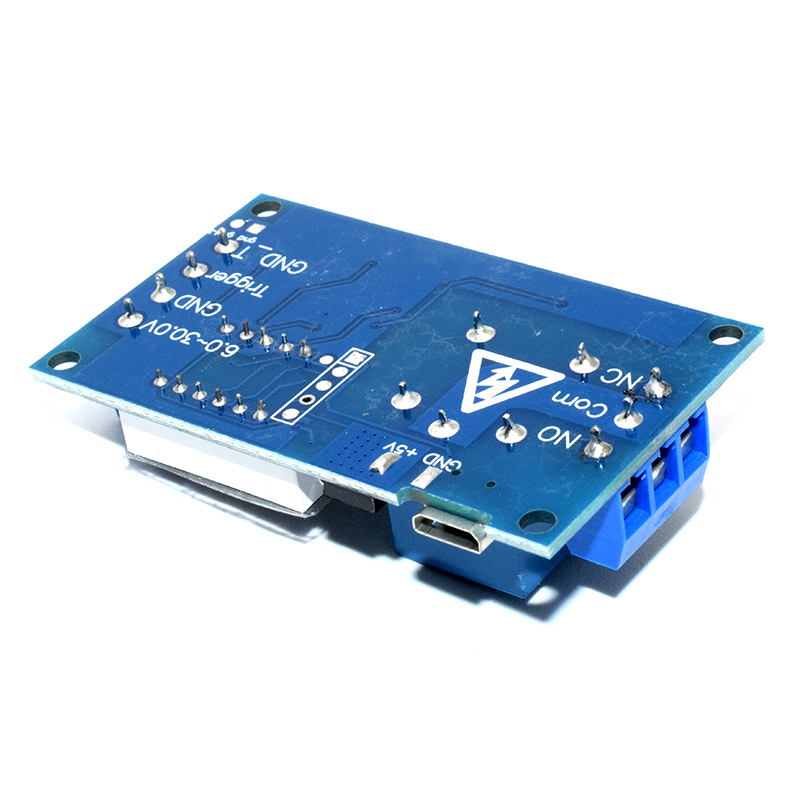

1 relay module delay power module

Features:
1. Wide voltage power supply (6 ~ 30V) Support micro USB 5.0V power supply, easy to use;
2. Interface is clear and concise, powerful, easy to understand, almost all of your needs can be met;
3. A key to stop function (STOP key), with reverse polarity protection, reverse polarity is not burning;
4. Increase the sleep mode, enabled, within 5 minutes without any operation, automatically turn off the monitor; wake up any key;
5. You can set different OP, CL, LOP parameters, these parameters are independent, save;
6. All setting parameters automatically save power down.
?
Product parameters:
1: Operating voltage: 6 - 30V support micro USB 5.0V power supply
2: Trigger Source: There is no high trigger (3.0V-24V) signal of the common ground system to improve the anti-jamming capability of the system (it is also a common ground for self-inductance short-circuit)
3: Output Capability: DC or AC within 30v 5A can be controlled within 220v5A
4: Quiescent current: 20mA Working current: 50mA
5: Timing range: 0.1 seconds -999 minutes continuously adjustable;
6: Availability: more than 100,000 times;
???????????????????????Operating temperature: -40-85 degrees Celsius;
????????????????????????Size: 6.2 * 3.8 * 1.7cm
7: The use of optocoupler isolation, enhanced anti-interference ability, industrial-grade circuit board, permanently set power-down memory parameters.
Special Note: The relay output is passive contact, uncharged output control cable.
